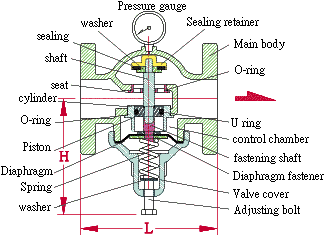

The gate adopts NO design, hence water supply will not be affected due to instability in inlet pressure. The internal pressure control chamber adopts diaphragm design, hence the function and life-time will not be affected by water purity. Besides, there is no leakage by this design. When the outlet pressure directly responds to pressure control chamber to adjust setting pressure the response is sensitive and adjustment can be very precise. กก Size Type H L 2" Flange 150 190 2" Thread 150 190 2.5" Flange 165 210 3" Flange 200 225 4" Flange 220 250       Adjusting range G    0.2kgf/cm2 - 4kgf/cm2    3kgf/cm2 -7kgf/cm2 Test pressure for valve body 21kgf/cm2   Pressure adjusting error +/-0.1kgf/cm2   Applied temperature:   -15C to 80C    The pressure gauge indicates the pressure in outlet. Direct-Activated Pressure Reducing Valve Flow Chart                                   1000            2000L/min     Flow rater-water Q = Rate of flow (GPM) P = Pressure drop across valve (psi) S = Specific gravity of fluid (Water=1) 1 Gallon =3.785 Liter Distributed by OEMic Industries Inc. Contact us			about us News Water piping illustration Pressure reducing valve set Full open style silent check valve MULTI-FUNCTION AUTO-CONTROL VALVES Pressure Reducing Valve Pressure Sustaining Valve Pressure Relief Valve Solenoid Control Valve Float Valve Direct-activated Pressure Reducing Valve WATER HAMMER ARRESTERS L style water hammer arrester I style water hammer arrester T style water hammer arrester Angle valve style water hammer arrester
